Reinforcing Mesh

Square mesh is manufactured from L grade ribbed wires (D500L) and Q235 materials that are welded together with equal spacing in both directions to form square apertures.

CONTACT NOW down load to pdf

Details

Tags

PRODUCTINTRODUCTION

This general purpose mesh is used for reinforcing flat concrete elements suchas floor slabs and walls.

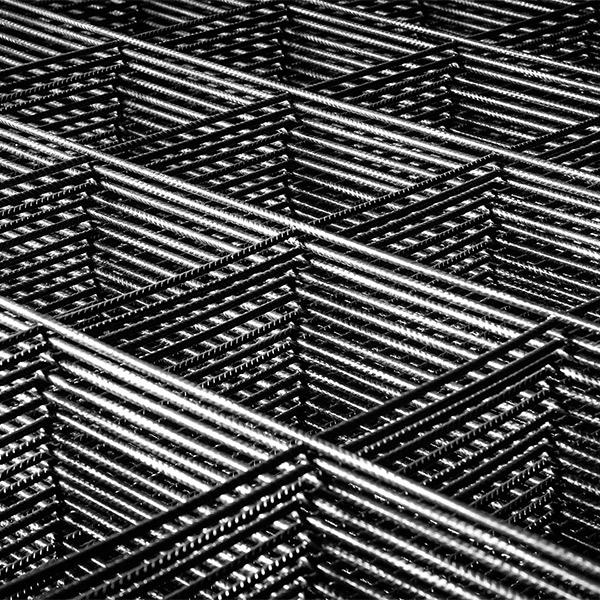

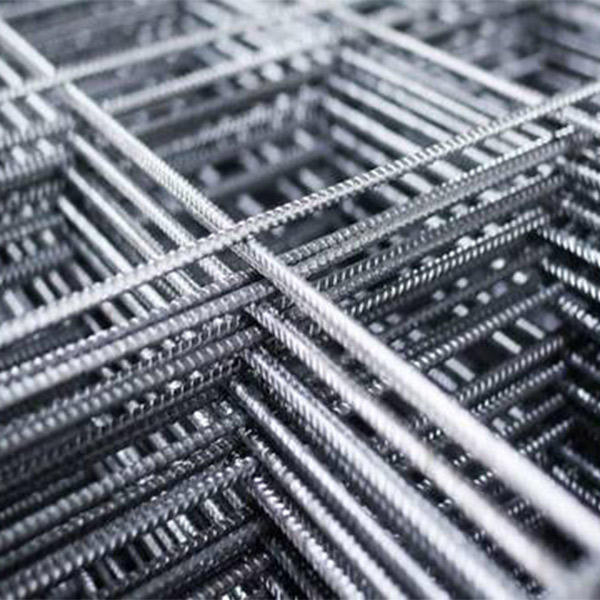

Square mesh is manufactured from L grade ribbed wires (D500L) and Q235 materials that are welded together with equal spacing in both directions to form square apertures.

Materials: CRB550

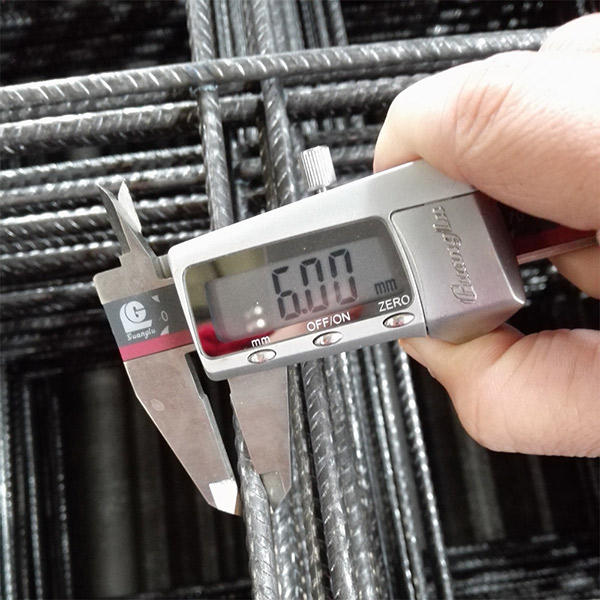

Wire diameter: 3mm-14mm

Opening: 50mm-300mm

Panel width: 100cm-300cm

Panel length: 100cm-1400cm

The general-purpose mesh plays a crucial role in fortifying flat concrete components such as floor slabs and walls. This square mesh, meticulously constructed, is forged from a combination of L grade ribbed wires (D500L) and Q235 materials. Through skilled welding techniques, these materials are seamlessly integrated with equal spacing in both directions, crafting robust square apertures ideal for reinforcing concrete structures.

The material used in this mesh, CRB550, is synonymous with high strength and endurance, guaranteeing the reinforcement's capacity to withstand substantial loads and resist stress. The wire diameter options, ranging from 3mm to 14mm, offer flexibility and versatility in reinforcing various concrete structures. This diversity in wire diameters caters to different load-bearing requirements and construction needs.

Moreover, the square mesh design encompasses openings spanning from 50mm to 300mm. This range allows adaptability to a variety of construction specifications, accommodating different structural designs and ensuring compatibility with diverse project requirements. Furthermore, the mesh panels are available in varying widths, from 100cm to 300cm, and lengths extending from 100cm to 1400cm. This variability in panel dimensions ensures tailored solutions according to specific project needs.

This mesh plays a pivotal role in distributing loads within concrete structures, enhancing their resilience and longevity. Its purpose extends to alleviating stress and reinforcing the integrity of floor slabs and walls, thereby ensuring their ability to withstand significant weight and resist structural strains effectively.

In essence, the square mesh for concrete reinforcement epitomizes a versatile and robust solution crafted from high-quality materials. With its varied dimensions, wire diameters, and resilient material composition, this mesh caters to a broad spectrum of construction needs. It stands as a crucial element in fortifying floor slabs and walls, guaranteeing structural strength and endurance.

Production Flow
No.	Production Process	No.	Production Process	No.	Production Process
1		2		3
1	Raw Material	2	Wire Drawing 1	3	Wire Drawing 2
4		5		6
4	Wire Cuting 1	5	Wire Cuting 2	6	Wire Mesh Welding 1
7		8		9

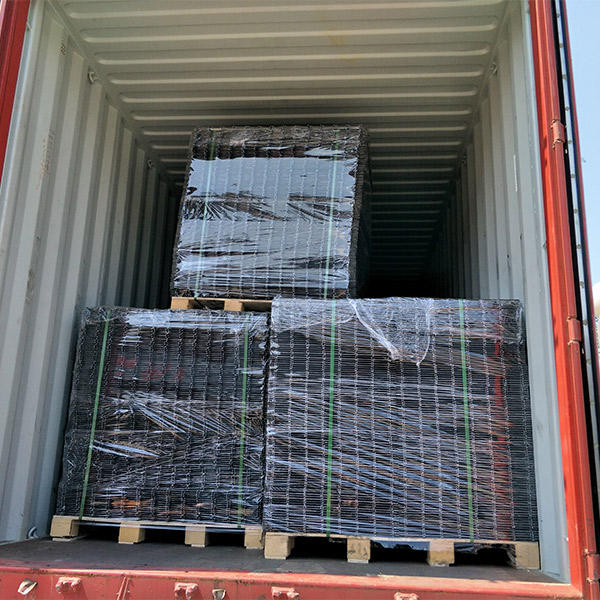

7	Wire Mesh Welding 2	8	Wire Mesh Welding 3	9	Packaging
