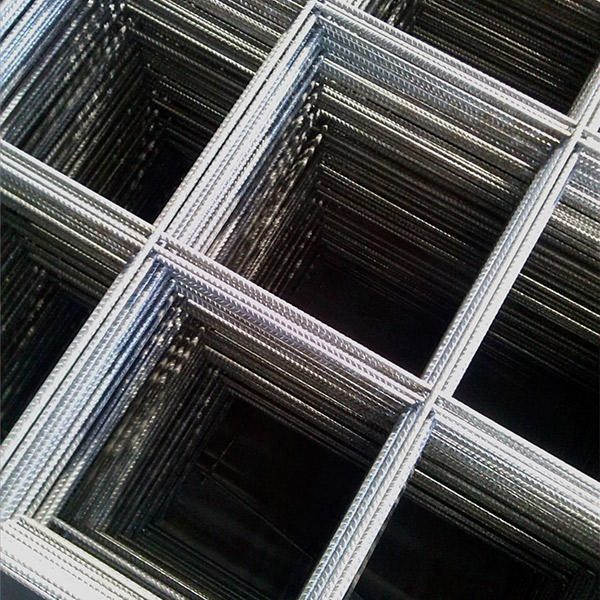

BS Reinforcing Mesh

Reinforcing mesh fabric is more commonly known as reinforcing mesh (re mesh) but also knows as concrete mesh, mesh fabric and reinforcing steel. Reinforcing mesh is an integral part of any concrete reinforcement project from foundations to driveways and flooring slabs. Reinforcing mesh helps hold the materials together other time and increase the load which can be applied.

CONTACT NOW down load to pdf

Details

Tags

PRODUCTINTRODUCTION

Type BS Reference	Mesh Sizes Nominal Pitch of Wires		Wire Sizes		Cross Sectional Area Per Metre Width		Weight Per ㎡	Sheet Per Tonne	Sheet Weight
	Main mm	Cross mm	Main mm	Cross mm	Main mm	Cross mm	KG		KG
SQUARE MESH FABRIC:200×200mm
A393	200	200	10	10	393	393	6.16	14	70.96
A252	200	200	8	8	252	252	3.95	22	45.5
A193	200	200	7	7	193	193	3.02	29	34.79
A142	200	200	6	6	142	142	2.22	39	25.37
STRUCTURAL MESH FABRIC:100×200mm
B1131	100	200	12	8	1131	252	10.9	8	125.57
B785	100	200	10	8	785	252	8.14	11	93.57
B503	100	200	8	8	503	252	5.93	15	68.31
B385	100	200	7	7	385	193	4.53	20	52.19
B283	100	200	6	7	283	193	3.73	24	42.97
LONG MESH FABRIC:100×400mm
C785	100	400	10	6	785	70.8	6.72	13	77.41
C636	100	400	9	6	636	70.8	5.55	16	63.94
C503	100	400	8	6	503	70.8	4.51	19	52.96
C385	100	400	7	6	385	70.8	3.58	24	41.24
C283	100	400	6	6	283	70.8	2.78	31	32.03
WRAPPING FABRIC:
D98	200	200	5	5	98	98	1.54	57	17.74
D49	100	100	2.5	2.5	49.1	49.1	0.77	113	8.87
