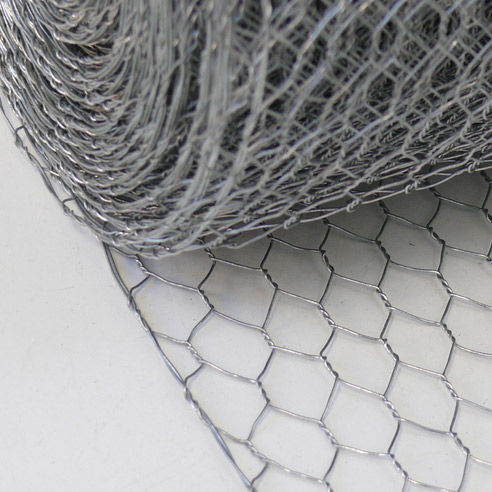

Hexagonal wire mesh
Hexagonal wire meshes is also called chicken wire, poultry netting ,rabbit netting. It is common used to fence chicken, poultry, rabbit and other animals.
surface treatment:
Galvanized after weaving, galvanized before weaving,
PVC coated galvanized
Hot-dipped galvanized
Electro galvanized.
Color: PVC coated hexagonal wire mesh is green, white, grey or other colors; enameled hexagonal wire mesh is green
Characters: strong welded points and bright luster .The mesh doesn’t come loose even if cut in parts or being exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust .
Usage: They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg basket, foodstuffs basket, etc.
Galvanized Hex. Wire Netting in Normal Twist | ||
Mesh Size | Wire Gauge (BWG) | |
Inch | mm | |
3/8" | 10mm | 27,26,25,24,23,22,21 |
1/2" | 13mm | 25,24,23,22,21,20, |
5/8" | 16mm | 27,26,25,24,23,22 |
3/4" | 20mm | 25,24,23,22,21,20,19 |
1" | 25mm | 25,24,23,22,21,20,19,18 |
1-1/4" | 32mm | 22,21,20,19,18 |
1-1/2" | 40mm | 22,21,20,19,18,17 |
2" | 50mm | 22,21,20,19,18,17,16,15,14 |
3" | 75mm | 21,20,19,18,17,16,15,14 |
4" | 100mm | 17,16,15,14 |
Width: 0.5M-2.0M | ||
Galvanized Hex. Wire Netting in Reverse Twist | ||||
Mesh | Wire Gauge | Reinforcement | ||
Inch | mm | (BWG) | Width(ft) | Strand |
1" | 25mm | 22,21,20,18 | 2' | 1 |
1-1/4" | 32mm | 22,21,20,18 | 3' | 2 |
1-1/2" | 40mm | 20,19,18 | 4' | 3 |
2" | 50mm | 20,19,18 | 5' | 4 |
3" | 75mm | 20,19,18 | 6' | 5 |
Width: 0.5M-2.0M | ||||
PVC-coated Hex. Wire Netting | ||
Mesh Size | Wire Dia(mm) | |
Inch | mm | |
1/2" | 13mm | 0.9mm,0.1mm |
1" | 25mm | 1.0mm,1.2mm,1.4mm |
1-1/2" | 40mm | 1.0mm,1.2mm,1.4mm,1.6mm |
2" | 50mm | 1.0mm,1.2mm,1.4mm,1.6mm |
Width: 0.5M-2.0M | ||
Hexagonal wire mesh
Hexagonal wire meshes is also called chicken wire, poultry netting ,rabbit netting. It is common used to fence chicken, poultry, rabbit and other animals.
surface treatment:
Galvanized after weaving, galvanized before weaving,
PVC coated galvanized
Hot-dipped galvanized
Electro galvanized.
Color: PVC coated hexagonal wire mesh is green, white, grey or other colors; enameled hexagonal wire mesh is green
Characters: strong welded points and bright luster .The mesh doesn’t come loose even if cut in parts or being exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust .
Usage: They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg basket, foodstuffs basket, etc.
Galvanized Hex. Wire Netting in Normal Twist | ||
Mesh Size | Wire Gauge (BWG) | |
Inch | mm | |
3/8" | 10mm | 27,26,25,24,23,22,21 |
1/2" | 13mm | 25,24,23,22,21,20, |
5/8" | 16mm | 27,26,25,24,23,22 |
3/4" | 20mm | 25,24,23,22,21,20,19 |
1" | 25mm | 25,24,23,22,21,20,19,18 |
1-1/4" | 32mm | 22,21,20,19,18 |
1-1/2" | 40mm | 22,21,20,19,18,17 |
2" | 50mm | 22,21,20,19,18,17,16,15,14 |
3" | 75mm | 21,20,19,18,17,16,15,14 |
4" | 100mm | 17,16,15,14 |
Width: 0.5M-2.0M | ||
Galvanized Hex. Wire Netting in Reverse Twist | ||||
Mesh | Wire Gauge | Reinforcement | ||
Inch | mm | (BWG) | Width(ft) | Strand |
1" | 25mm | 22,21,20,18 | 2' | 1 |
1-1/4" | 32mm | 22,21,20,18 | 3' | 2 |
1-1/2" | 40mm | 20,19,18 | 4' | 3 |
2" | 50mm | 20,19,18 | 5' | 4 |
3" | 75mm | 20,19,18 | 6' | 5 |
Width: 0.5M-2.0M | ||||
PVC-coated Hex. Wire Netting | ||
Mesh Size | Wire Dia(mm) | |
Inch | mm | |
1/2" | 13mm | 0.9mm,0.1mm |
1" | 25mm | 1.0mm,1.2mm,1.4mm |
1-1/2" | 40mm | 1.0mm,1.2mm,1.4mm,1.6mm |
2" | 50mm | 1.0mm,1.2mm,1.4mm,1.6mm |
Width: 0.5M-2.0M | ||
